Hydraulic Machinery & Systems

Robust, high-performance hydraulic solutions designed for demanding marine and offshore applications, including low-speed high-torque motors, swash plate axial piston motors, and precision-engineered piston pumps.

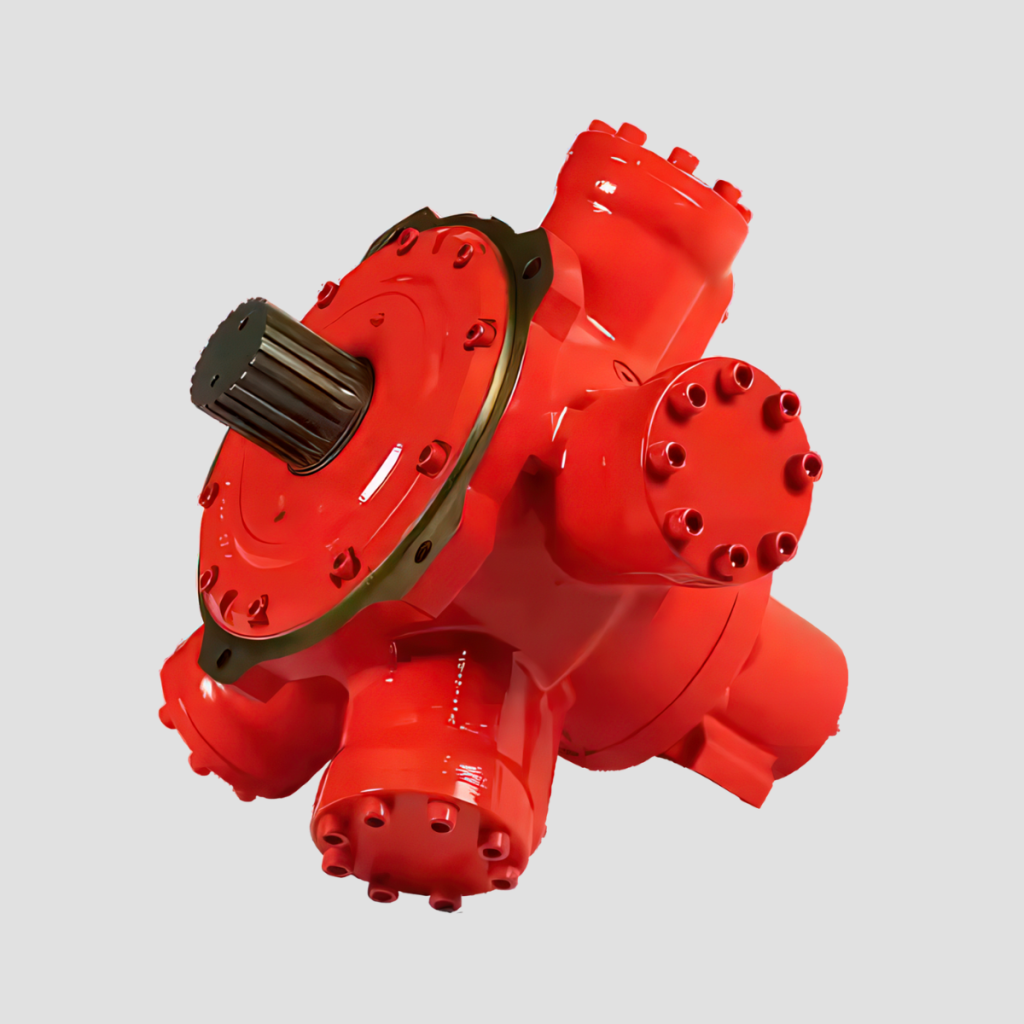

Low Speed High Torque Motor

The RM hydraulic motor from Jiangsu Masada-Mitsubishi Hydraulics incorporates complete technology and quality control processes from Mitsubishi Heavy Industries Machinery Systems. Compact and lightweight, it is engineered to enhance core performance, sliding efficiency, and durability, meeting the demands of low-speed, high-torque applications.

Featuring a well-designed radial piston structure, it delivers high output torque across a wide speed range. The motor’s multiple displacement capability allows for variable output by adjusting the cam’s eccentric distance, enabling flexible performance to suit diverse operational needs.

Key Features

Compact design with simplified construction

High efficiency with reduced internal losses for energy savings

Strong starting performance

Two-speed operation: low speed/high torque and high speed/constant torque when paired with a special service valve (manual or variable)

Supports continuous operation at 24.5 MPa for high reliability

High-pressure oil seal allows drain line pressure up to 1.0 MPa

Robust shaft design supports high load capacity

Low Speed High Torque Motor Specifications & Parameters

Model	Displacement (cc/rev)		Pressure (Mpa)		Torque (Nm)		Speed (r /min)
			Rated	Max			High		Low
RMM-075	High	Low	20.6	24.5	High	Low	at 20.6 Mpa	at 24.5Mpa	at 20.6 Mpa	at 24.5Mpa
	745	497			2630	1749	5-400	5-200	10-500	10-250
		378				1312			10-600	10-300
RMM-150		245				790			10-600	10-300
	1520	1028			5498	3652	3-300	5-150	10-380	10-190
		766				2763			10-450	10-225
		509				1600			10-450	10-225
RMM-315	3142	1570			11420	5490	3-175	5-100	5-260	10-130
		1256				4570			5-260	10-130
		1047				3800			5-260	10-130
		952				3460			5-260	10-130
RMM-440	4393	2928			15800	10170	3-125	5-75	5-185	10-100
		2196				7380			5-240	10-120
		1460				4690			10-240	10-120

Swash Plate Type Axial Piston Motor

A compact, medium-to-low speed motor designed for reliable performance in demanding environments. Its small size and efficient design make it ideal for applications requiring smooth operation and consistent output.

Applications
Construction machinery
Cargo handling and transportation equipment
Marine equipment
Industrial machinery

Swash Plate Type High Speed Axial Piston Motor

Engineered for high-pressure, high-power, and high-speed performance, this motor delivers reliable operation in demanding marine environments.

Applications
Ship machinery

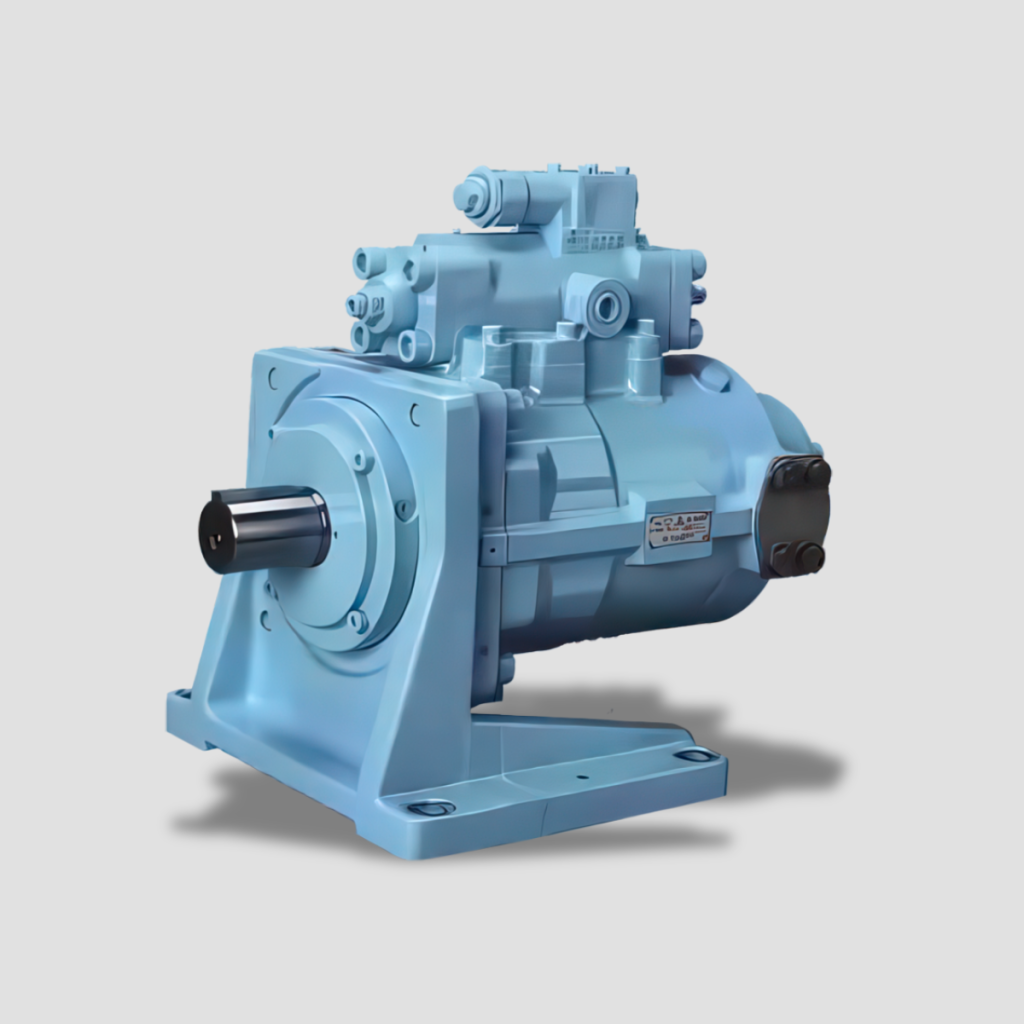

Swash Plate Type Axial Piston Pump

A lightweight, low-noise hydraulic pump designed for efficient and reliable performance. It offers excellent self-suction capability and smooth operation across various applications.

Key Features
Compact and lightweight design
Low noise output
High performance and efficiency
Strong self-suction ability

Applications
Engineering machinery
Plastic injection machinery
Ship machinery
Press machines
Concrete pumping vehicles
Chemical equipment
Iron and steel manufacturing machinery
